  • #1158467

    Hello everyone. Can you help me?

    How do I make this block with these squares? What is the option?

    LINK
    https://www.dropbox.com/s/g5yo900neyymdvj/BLOCK.png?dl=0

    #1159215

    Hey mleite1,

    https://cl.ly/3922eccf48b3 It’s the icon grid with the flip box option.

    Best regards,
    Victoria

    #1159334

    Hello Victoria. I have tested with this option and it does not behave the same way. It looks very different.
    .

    LINK VIEW

    • This reply was modified 5 years, 1 month ago by mleite1.
    #1159469

    Hi mleite1,

    https://cl.ly/5d5a284f5358 I am getting a 404 page. Do I need credentials to see it or did you remove the page?

    Best regards,
    Victoria

    #1159470

    Hi mleite1,

    https://cl.ly/5d5a284f5358 I am getting a 404 page. Do I need credentials to see it or did you remove the page?

    Best regards,
    Victoria

    #1159564

    This is part of a demo site!

    • activate the Debug Mode in Enfold by adding this to your child-theme functions.php

    // Debug Modus Enfold
    add_action('avia_builder_mode', "builder_set_debug");
    function builder_set_debug(){
      return "debug";
    }

    • Create a new page on your enfold installation – don’t forget to name it
    Enable the Advanced Layerslider Editor ( now you can see under the layout input area another one which shows you all the enfold shortcodes generated by the ALB Elements you pull into the avia layout builder – publish that page ( this is now an empty page generated with alb )

    • now find the shortcode of that demo page
    – so all demo import options can be found at : enfold – includes – admin – demo_files
    look on the demo page to get the name of the demo and look what the page is ( in your case: knowledgebase and the page is the home page.

    open that knowledgebase.xml with a good texteditor ( f.e. : sublime text on mac (or bbedit) – notepad++ for windows )
    find : <title>Home</title>
    the enfold shortcode of that page is sourrounded by:
    <content:encoded><![CDATA[ here is the enfold shortcode ]]></content:encoded>

    i shorten it to the element you like to have with a color-section above that you can see the negative margin
    copy that code inbetween :

    [av_section min_height='75' min_height_pc='25' min_height_px='500px' padding='default' shadow='no-shadow' bottom_border='border-extra-diagonal' bottom_border_diagonal_color='#ffffff' bottom_border_diagonal_direction='border-extra-diagonal-inverse' bottom_border_style='' custom_margin='0px' custom_margin_sync='true' custom_arrow_bg='' color='main_color' background='bg_gradient' custom_bg='' background_gradient_color1='#009efd' background_gradient_color2='#2af598' background_gradient_direction='diagonal_bt' src='https://kriesi.at/themes/enfold-knowledgebase/wp-content/uploads/sites/80/2018/10/hero-bg.png' attachment='221' attachment_size='full' attach='scroll' position='center center' repeat='no-repeat' video='' video_ratio='16:9' overlay_opacity='0.5' overlay_color='' overlay_pattern='' overlay_custom_pattern='' id='search_section' custom_class='' aria_label='' av_element_hidden_in_editor='0' av_uid='av-jgasyq2w']
    [av_heading heading='Customer Support
    <strong>& Knowledge Base</strong>' tag='h1' link_apply='' link='manually,http://' link_target='' style='blockquote modern-quote' size='42' subheading_active='' subheading_size='14' margin='' padding='0' color='custom-color-heading' custom_font='#ffffff' custom_class='' id='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-innvjb'][/av_heading]
    [/av_section]

    [av_section min_height='' min_height_px='500px' padding='default' shadow='no-border-styling' bottom_border='border-extra-diagonal' bottom_border_diagonal_color='#ffffff' bottom_border_diagonal_direction='' bottom_border_style='' custom_arrow_bg='' id='frontpage_grid' color='main_color' background='bg_color' custom_bg='' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' attach='scroll' position='top left' repeat='no-repeat' video='' video_ratio='16:9' overlay_opacity='0.5' overlay_color='' overlay_pattern='' overlay_custom_pattern='' av_element_hidden_in_editor='0' av_uid='av-jgatvii1' custom_class='']
    [av_one_third first min_height='av-equal-height-column' vertical_alignment='av-align-top' space='no_margin' custom_margin='aviaTBcustom_margin' margin='-300px,0' row_boxshadow_color='' row_boxshadow_width='10' link='category,16' linktarget='' link_hover='opacity80' padding='80px,10px,80px,10px' highlight_size='1.1' border='1' border_color='rgba(230,234,236,0.5)' radius='0px' radius_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='rgba(255,255,255,0.95)' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-45nqm' custom_class='']

    [av_font_icon icon='ue832' font='enfold-knowledgebase' style='' caption='' link='' linktarget='' size='40px' position='center' color='#79c8f8' av_uid='av-jfdzoxcx' custom_class='' admin_preview_bg=''][/av_font_icon]

    [av_hr class='invisible' height='10' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='yes' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-vsj2' admin_preview_bg='']

    [av_heading heading='Guides' tag='h3' link_apply='' link='' link_target='' style='blockquote modern-quote modern-centered' size='27' subheading_active='' subheading_size='15' margin='' padding='5' color='custom-color-heading' custom_font='#4d6877' custom_class='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-6bvdunb'][/av_heading]

    [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-jfe0fj83' custom_class='' admin_preview_bg='']
    <p style="text-align: center;">Tutorials for using the theme,
    building content and
    everything else!</p>
    [/av_textblock]

    [/av_one_third][av_one_third min_height='' vertical_alignment='av-align-top' space='' margin='0px' margin_sync='true' row_boxshadow_color='' row_boxshadow_width='10' link='page,647' linktarget='' link_hover='opacity80' padding='80px,10px,80px,10px' highlight_size='1.1' border='1' border_color='rgba(230,234,236,0.5)' radius='0px' radius_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='rgba(255,255,255,0.95)' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-aage' custom_class='']

    [av_font_icon icon='ue825' font='enfold-knowledgebase' style='' caption='' link='' linktarget='' size='40px' position='center' color='#79c8f8' av_uid='av-jfdzoxcx' custom_class='' admin_preview_bg=''][/av_font_icon]

    [av_hr class='invisible' height='10' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='yes' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-vsj2' admin_preview_bg='']

    [av_heading heading='FAQ' tag='h3' link_apply='' link='' link_target='' style='blockquote modern-quote modern-centered' size='27' subheading_active='' subheading_size='15' margin='' padding='10' color='custom-color-heading' custom_font='#4d6877' custom_class='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-5mz86w7'][/av_heading]

    [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-jfe0gaz0' custom_class='' admin_preview_bg='']
    <p style="text-align: center;">Frequently Asked Questions
    and beginners hurdles</p>
    [/av_textblock]

    [/av_one_third][av_one_third min_height='' vertical_alignment='av-align-top' space='' margin='0px' margin_sync='true' row_boxshadow_color='' row_boxshadow_width='10' link='page,707' linktarget='' link_hover='opacity80' padding='80px,10px,80px,10px' highlight_size='1.1' border='1' border_color='rgba(230,234,236,0.5)' radius='0px' radius_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='rgba(255,255,255,0.95)' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-52c6' custom_class='']

    [av_font_icon icon='ue82f' font='enfold-knowledgebase' style='' caption='' link='' linktarget='' size='40px' position='center' color='#79c8f8' av_uid='av-jfdzoxcx' custom_class='' admin_preview_bg=''][/av_font_icon]

    [av_hr class='invisible' height='10' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='yes' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-vsj2' admin_preview_bg='']

    [av_heading heading='Community' tag='h3' link_apply='' link='' link_target='' style='blockquote modern-quote modern-centered' size='27' subheading_active='' subheading_size='15' margin='' padding='10' color='custom-color-heading' custom_font='#4d6877' custom_class='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-5hau2x3'][/av_heading]

    [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-jfe0gsih' custom_class='' admin_preview_bg='']
    <p style="text-align: center;">Our every growing community
    where you will meet
    other awesome users</p>
    [/av_textblock]

    [/av_one_third][av_one_third first min_height='av-equal-height-column' vertical_alignment='av-align-top' space='no_margin' margin='0px' margin_sync='true' row_boxshadow_color='' row_boxshadow_width='10' link='category,15' linktarget='' link_hover='opacity80' padding='80px,10px,80px,10px' highlight_size='1.1' border='1' border_color='rgba(230,234,236,0.5)' radius='0px' radius_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='rgba(255,255,255,0.95)' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-45nqm' custom_class='']

    [av_font_icon icon='ue820' font='enfold-knowledgebase' style='' caption='' link='' linktarget='' size='40px' position='center' color='#79c8f8' av_uid='av-jfdzoxcx' custom_class='' admin_preview_bg=''][/av_font_icon]

    [av_hr class='invisible' height='10' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='yes' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-vsj2' admin_preview_bg='']

    [av_heading heading='Getting Started' tag='h3' link_apply='' link='' link_target='' style='blockquote modern-quote modern-centered' size='27' subheading_active='' subheading_size='15' margin='' padding='10' color='custom-color-heading' custom_font='#4d6877' custom_class='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-4o861fr'][/av_heading]

    [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-jfe0ha0h' custom_class='' admin_preview_bg='']
    <p style="text-align: center;">If you are new to Enfold,
    start here with
    easy to follow tutorials</p>
    [/av_textblock]

    [/av_one_third][av_one_third min_height='av-equal-height-column' vertical_alignment='av-align-middle' space='no_margin' margin='0px' margin_sync='true' row_boxshadow_color='' row_boxshadow_width='10' link='page,707' linktarget='' link_hover='opacity80' padding='80px,10px,80px,10px' highlight='aviaTBhighlight' highlight_size='1.1' border='' border_color='rgba(230,234,236,0.5)' radius='0px' radius_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_gradient' background_color='rgba(255,255,255,0.95)' background_gradient_color1='#2af598' background_gradient_color2='#009efd' background_gradient_direction='diagonal_tb' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-45nqm' custom_class='']

    [av_font_icon icon='ue81c' font='enfold-knowledgebase' style='' caption='' link='' linktarget='' size='40px' position='center' color='#ffffff' av_uid='av-jfdzoxcx' custom_class='' admin_preview_bg=''][/av_font_icon]

    [av_hr class='invisible' height='10' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='yes' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-vsj2' admin_preview_bg='']

    [av_heading heading='Submit a Request' tag='h3' link_apply='' link='' link_target='' style='blockquote modern-quote modern-centered' size='27' subheading_active='' subheading_size='15' margin='' padding='10' color='custom-color-heading' custom_font='#ffffff' custom_class='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-4inadxj'][/av_heading]

    [av_textblock size='' font_color='custom' color='#ffffff' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-jfe0hwwx' custom_class='' admin_preview_bg='']
    <p style="text-align: center;">For any other questions
    and specific issues.</p>
    [/av_textblock]

    [/av_one_third][av_one_third min_height='av-equal-height-column' vertical_alignment='av-align-middle' space='no_margin' margin='0px' margin_sync='true' row_boxshadow_color='' row_boxshadow_width='10' link='category,14' linktarget='' link_hover='opacity80' padding='80px,10px,80px,10px' highlight_size='1.1' border='1' border_color='rgba(230,234,236,0.5)' radius='0px' radius_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='rgba(255,255,255,0.95)' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-45nqm' custom_class='']

    [av_font_icon icon='ue80a' font='enfold-knowledgebase' style='' caption='' link='' linktarget='' size='40px' position='center' color='#79c8f8' av_uid='av-jfdzoxcx' custom_class='' admin_preview_bg=''][/av_font_icon]

    [av_hr class='invisible' height='10' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='yes' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-vsj2' admin_preview_bg='']

    [av_heading heading='Downloads' tag='h3' link_apply='' link='' link_target='' style='blockquote modern-quote modern-centered' size='27' subheading_active='' subheading_size='15' margin='' padding='10' color='custom-color-heading' custom_font='#4d6877' custom_class='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-445mdon'][/av_heading]

    [av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-jfe0hwwx' custom_class='' admin_preview_bg='']
    <p style="text-align: center;">The official Child Theme
    for Enfold, Plugins and
    useful Code Snippets</p>
    [/av_textblock]

    [/av_one_third]
    [/av_section]



    that copied content you can insert into that input area below the layout builder:

    publish then (update)
    • now you see the layout builder element on top in that layout field.
    • get rid of the stuff you don’t like to have
    (• if you are familiar with the enfold shorcodes you can pick out only the parts you like to have before copying)

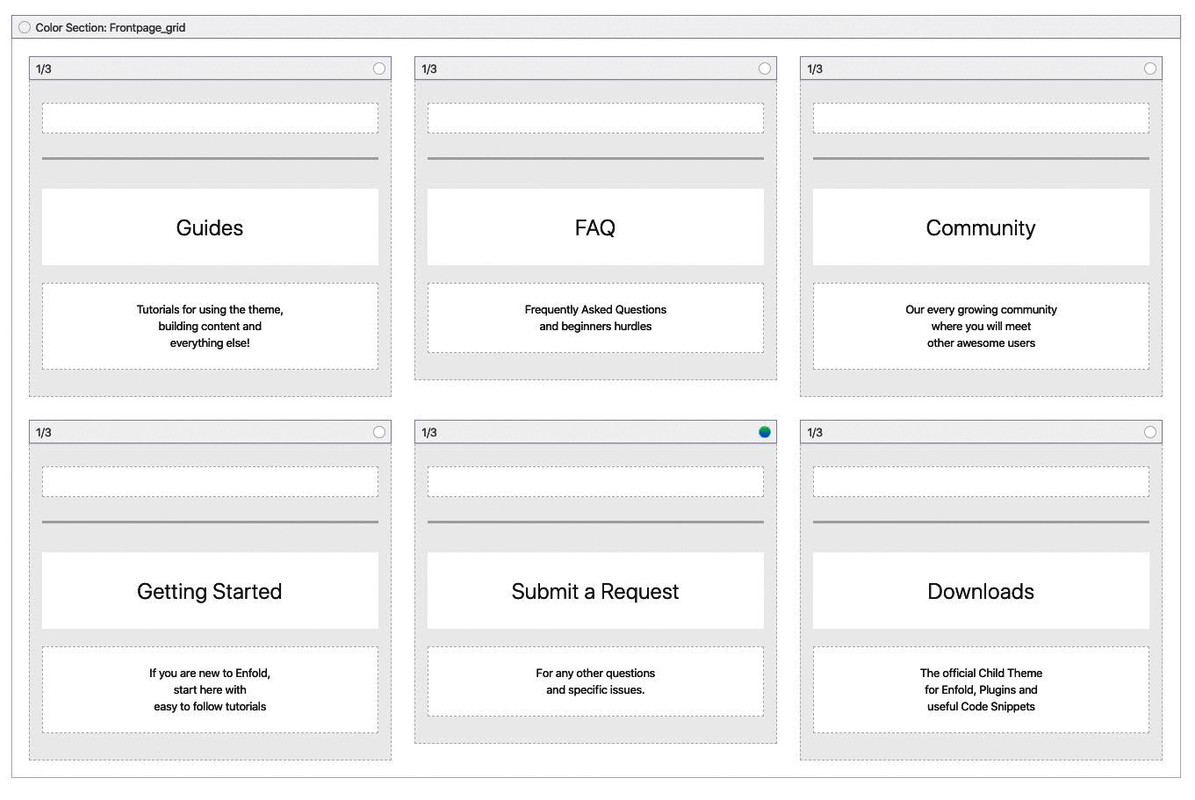

    by the way – this is not a flip grid element – it is a color-section with 1/3 columns in it (equal height) and no space between columns:
    the first one of them (guides) has set a negative margin of -300px

    #1159566

    you have to adjust now the content of the layout builder elements – because the links f.e. in it works if the link target is set to your targets.
    And the icon-set is not in your installation

    #1159592

    Very good. Congratulations on sharing something very valuable. I am very happy.

    TKS Guenni007

    #1159783

    you are welcome.

    this is a nice way to pick out the enfold shortcode to select some layouts from the pages of a demo.
    Because of the original insertions (image links – categories – postlinks etc. pp) – you only had to adjust the layout after import.

    sometimes on those xml datas the content starts with : <wp:meta_value><![CDATA[{{{title}}} – copy only the enfold shortcode – without those curly brackets. ( Mostly it will start as mentioned above: <content:encoded><![CDATA[

    #1160188

    Hi,

    Thanks for helping out @guenni007 :-)

    Best regards,
    Rikard
