Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • #1293008

    is there a little bug on giving a “Custom top and bottom margin” to columns in a color-section?
    (Setting is : individual height – so it is not display: table / table-cell) and : f.e. : 3 1/3 columns
    they all layered above each other.
    Can you reproduce this?

    #1293590

    Hey Guenter,

    I’m seeing overlapping on desktop on my end, but it looks ok on mobile. Could you give us some more details on your settings, so that we can try to reproduce this problem please?

    Best regards,
    Rikard

    #1293632

    Everything is said above. If you see this like me:

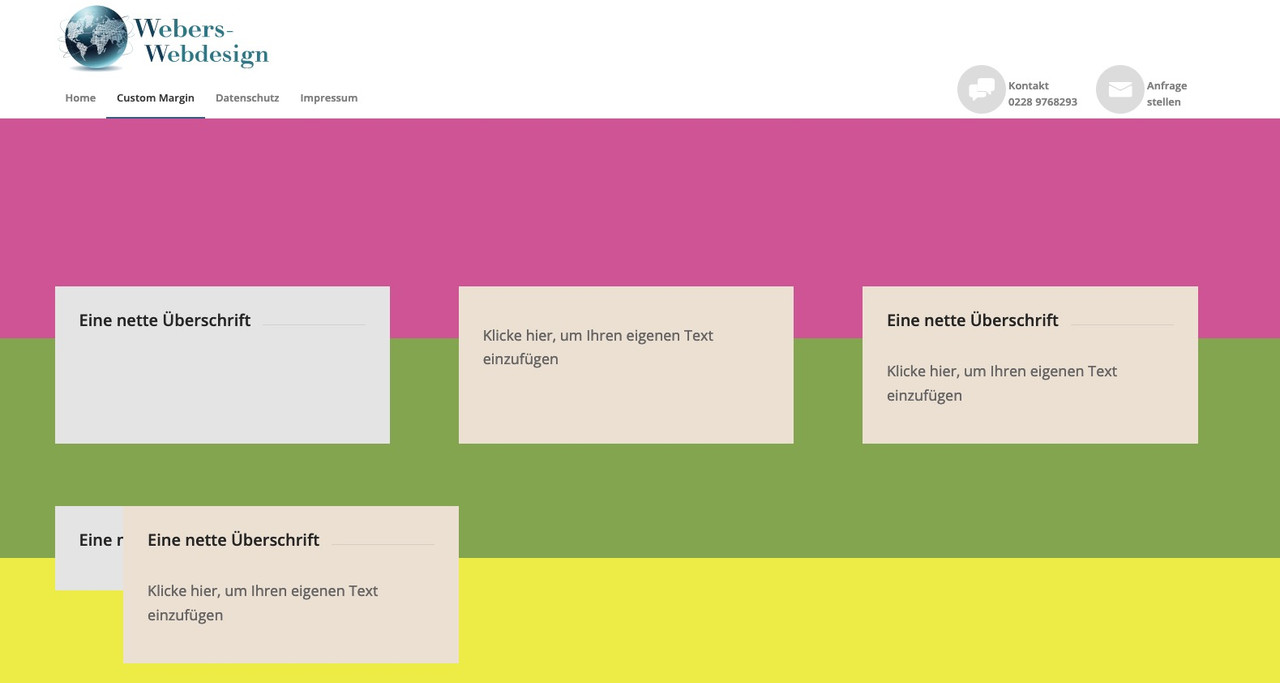

    second color-section (green bg) with columns set to equal height and with negative shift of all columns to top – here everything is ok.
    on bottom a color-section ( yellow one ) a copy of all columns – but set to individual height – same negative margin to shift to top – overlapping 3 columns – the fist looks out a bit – caused to margin-left : 0 – on mobile – totaly overlapping of all 3 columns.

    for you to copy:

    [av_section min_height='25' min_height_pc='25' min_height_px='500px' padding='default' custom_margin='0px' custom_margin_sync='true' color='main_color' background='bg_color' custom_bg='#d65799' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' attach='scroll' position='top left' repeat='no-repeat' video='' video_ratio='16:9' overlay_opacity='0.5' overlay_color='' overlay_pattern='' overlay_custom_pattern='' shadow='no-border-styling' bottom_border='no-border-styling' bottom_border_diagonal_color='#333333' bottom_border_diagonal_direction='' bottom_border_style='' custom_arrow_bg='' id='' custom_class='' template_class='' aria_label='' av_element_hidden_in_editor='0' av_uid='av-kn75k2l9' sc_version='1.0'][/av_section]

    [av_section min_height='25' min_height_pc='25' min_height_px='500px' padding='default' custom_margin='0px' custom_margin_sync='true' color='main_color' background='bg_color' custom_bg='#83a846' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' attach='scroll' position='top left' repeat='no-repeat' video='' video_ratio='16:9' overlay_opacity='0.5' overlay_color='' overlay_pattern='' overlay_custom_pattern='' shadow='no-border-styling' bottom_border='no-border-styling' bottom_border_diagonal_color='#333333' bottom_border_diagonal_direction='' bottom_border_style='' custom_arrow_bg='' id='' custom_class='' template_class='' aria_label='' av_element_hidden_in_editor='0' av_uid='av-kn75k86o' sc_version='1.0']

    [av_one_third first min_height='av-equal-height-column' vertical_alignment='av-align-top' space='' row_boxshadow_color='' row_boxshadow_width='10' custom_margin='aviaTBcustom_margin' margin='-200px,0px' mobile_breaking='' border='' border_color='' radius='0px' radius_sync='true' padding='30px' padding_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='#e5e5e5' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' highlight_size='1.1' animation='' link='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' id='' custom_class='' template_class='' aria_label='' av_uid='av-kn75l7zt' sc_version='1.0']

    [av_heading heading='Eine nette Überschrift' tag='h3' style='' subheading_active='' show_icon='' icon='' size='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' subheading_size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' icon_size='' av-medium-font-size-1='' av-small-font-size-1='' av-mini-font-size-1='' color='' custom_font='' icon_color='' margin=',,,,' padding='10' icon_padding='10' link='' link_target='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-3khuw' sc_version='1.0'][/av_heading]

    [/av_one_third][av_one_third min_height='' vertical_alignment='av-align-top' space='' row_boxshadow_color='' row_boxshadow_width='10' margin='0px' margin_sync='true' mobile_breaking='' border='' border_color='' radius='0px' radius_sync='true' padding='30px' padding_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='#ede2d3' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' highlight_size='1.1' animation='' link='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' id='' custom_class='' template_class='' aria_label='' av_uid='av-kn75m2i6' sc_version='1.0']

    [av_textblock size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-9k2g' sc_version='1.0']
    Klicke hier, um Ihren eigenen Text einzufügen
    [/av_textblock]

    [/av_one_third][av_one_third min_height='' vertical_alignment='av-align-top' space='' row_boxshadow_color='' row_boxshadow_width='10' margin='0px' margin_sync='true' mobile_breaking='' border='' border_color='' radius='0px' radius_sync='true' padding='30px' padding_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='#ede2d3' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' highlight_size='1.1' animation='' link='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' id='' custom_class='' template_class='' aria_label='' av_uid='av-1vw80' sc_version='1.0']

    [av_heading heading='Eine nette Überschrift' tag='h3' style='' subheading_active='' show_icon='' icon='' size='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' subheading_size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' icon_size='' av-medium-font-size-1='' av-small-font-size-1='' av-mini-font-size-1='' color='' custom_font='' icon_color='' margin=',,,,' padding='10' icon_padding='10' link='' link_target='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-1ed7c' sc_version='1.0'][/av_heading]

    [av_textblock size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-rl7w' sc_version='1.0']
    Klicke hier, um Ihren eigenen Text einzufügen
    [/av_textblock]

    [/av_one_third][/av_section][av_section min_height='25' min_height_pc='25' min_height_px='500px' padding='default' custom_margin='0px' custom_margin_sync='true' color='main_color' background='bg_color' custom_bg='#eeee22' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' attach='scroll' position='top left' repeat='no-repeat' video='' video_ratio='16:9' overlay_opacity='0.5' overlay_color='' overlay_pattern='' overlay_custom_pattern='' shadow='no-border-styling' bottom_border='no-border-styling' bottom_border_diagonal_color='#333333' bottom_border_diagonal_direction='' bottom_border_style='' custom_arrow_bg='' id='' custom_class='' template_class='' aria_label='' av_element_hidden_in_editor='0' av_uid='av-kn75tsfl' sc_version='1.0']

    [av_one_third first min_height='' vertical_alignment='av-align-top' space='' row_boxshadow_color='' row_boxshadow_width='10' custom_margin='aviaTBcustom_margin' margin='-200px,0px' mobile_breaking='' border='' border_color='' radius='0px' radius_sync='true' padding='30px' padding_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='#e5e5e5' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' highlight_size='1.1' animation='' link='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' id='' custom_class='' template_class='' aria_label='' av_uid='av-kn75tmau' sc_version='1.0']

    [av_heading heading='Eine nette Überschrift' tag='h3' style='' subheading_active='' show_icon='' icon='' size='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' subheading_size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' icon_size='' av-medium-font-size-1='' av-small-font-size-1='' av-mini-font-size-1='' color='' custom_font='' icon_color='' margin=',,,,' padding='10' icon_padding='10' link='' link_target='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-3zd4c' sc_version='1.0'][/av_heading]

    [/av_one_third][av_one_third min_height='' vertical_alignment='av-align-top' space='' row_boxshadow_color='' row_boxshadow_width='10' margin='0px' margin_sync='true' mobile_breaking='' border='' border_color='' radius='0px' radius_sync='true' padding='30px' padding_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='#ede2d3' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' highlight_size='1.1' animation='' link='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' id='' custom_class='' template_class='' aria_label='' av_uid='av-37i6s' sc_version='1.0']

    [av_textblock size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-2l0rw' sc_version='1.0']
    Klicke hier, um Ihren eigenen Text einzufügen
    [/av_textblock]

    [/av_one_third][av_one_third min_height='' vertical_alignment='av-align-top' space='' row_boxshadow_color='' row_boxshadow_width='10' margin='0px' margin_sync='true' mobile_breaking='' border='' border_color='' radius='0px' radius_sync='true' padding='30px' padding_sync='true' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='#ede2d3' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_position='top left' background_repeat='no-repeat' highlight_size='1.1' animation='' link='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' id='' custom_class='' template_class='' aria_label='' av_uid='av-1wz18' sc_version='1.0']

    [av_heading heading='Eine nette Überschrift' tag='h3' style='' subheading_active='' show_icon='' icon='' size='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' subheading_size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' icon_size='' av-medium-font-size-1='' av-small-font-size-1='' av-mini-font-size-1='' color='' custom_font='' icon_color='' margin=',,,,' padding='10' icon_padding='10' link='' link_target='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-1enuo' sc_version='1.0'][/av_heading]

    [av_textblock size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' template_class='' av_uid='av-uwqo' sc_version='1.0']
    Klicke hier, um Ihren eigenen Text einzufügen
    [/av_textblock]

    [/av_one_third][/av_section]
    #1293633

    btw: there is now a copy of the yellow color-section ( now with other bg-color) but without negativ margin shift
    here again all is ok.
    So the negative margin to shift the columns to top ( to overlap the section before ) in combination with individual height leads to that overlapping of the columns.

    #1293636

    A solution would be to have analog to the equal-height ( min-height option in columns.php) an additional wrapper div even for individual height option that will have the style on that.

    By the way – this seems to be a general problem on floating divs and negative margins.
    f.e: https://www.smashingmagazine.com/2009/07/the-definitive-guide-to-using-negative-margins/#negative-margins-on-floated-elements

    #1294017

    Hi,

    Thank you for the info.

    We will forward the issue to our channel. Temporary solution is to set the columns to have an equal height, or apply the negative top margin to the color section containing the columns instead.

    Best regards,
    Ismael

    #1294111

    Thanks Ismael – this was a bug info – and not a find a solution topic ;)
    The first solution is acceptable the second one is not so practicable, because you see from the example page, if the “shifted” color-section has a background it becomes problematic.
    I never noticed that, because I used it mostly only when I wanted to move a 1/1 column up – like it is often done in this demo : https://kriesi.at/themes/enfold-church/
    In principle, the question remains whether maintaining the negative margin in the responsive case makes sense at all.

    can be closed

    #1294334

    Hi,

    because you see from the example page, if the “shifted” color-section has a background it becomes problematic.

    Yes, that could be an issue, but it is not that difficult to remove the color section background or to make it transparent. Anyway, we have already pushed the issue to our channel. We will close the thread for now.

    Have a nice day.

    Best regards,
    Ismael

Viewing 8 posts - 1 through 8 (of 8 total)
  • The topic ‘Columns and "Custom top and bottom margin" on mobile view’ is closed to new replies.
